Chalkboard

Introduction

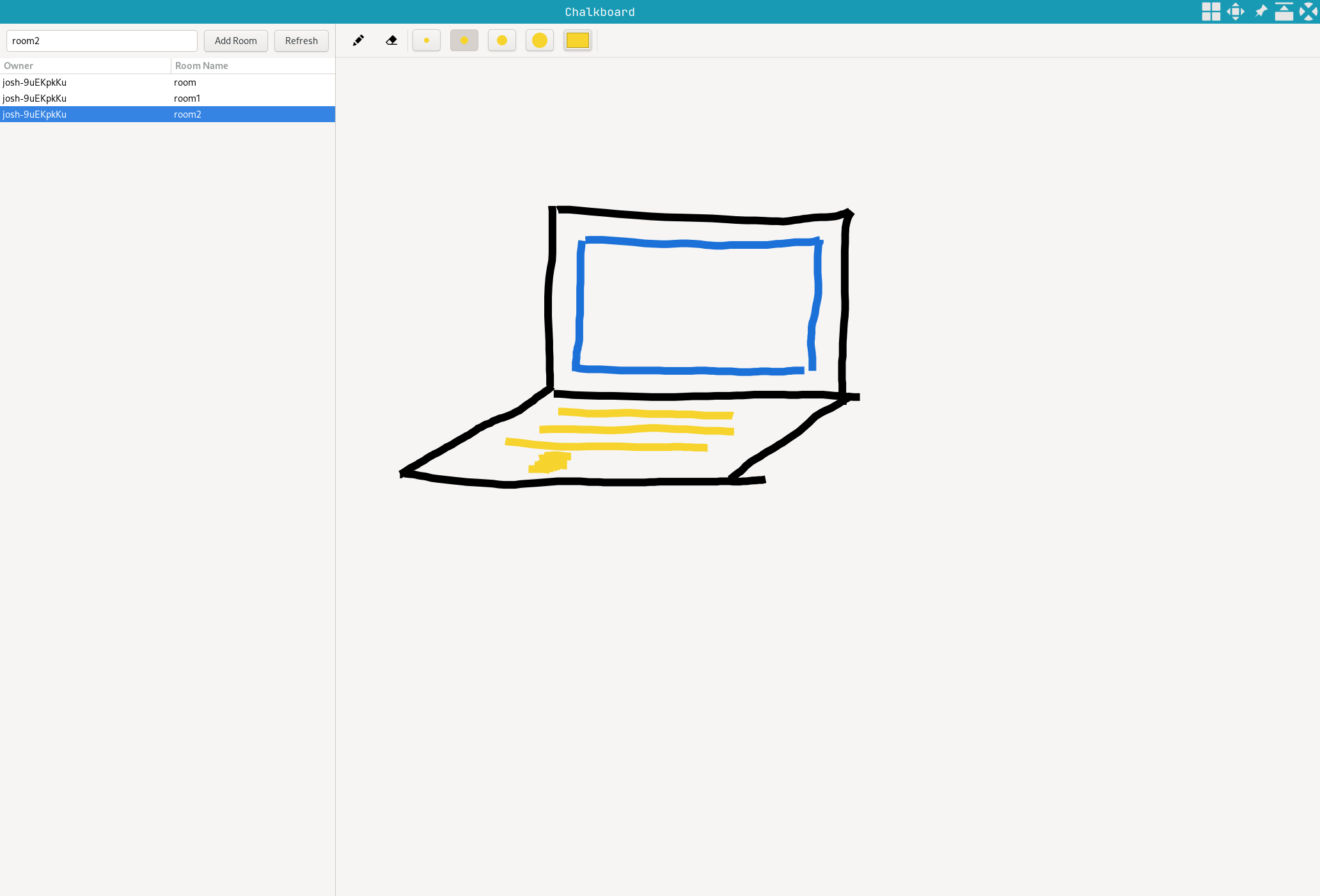

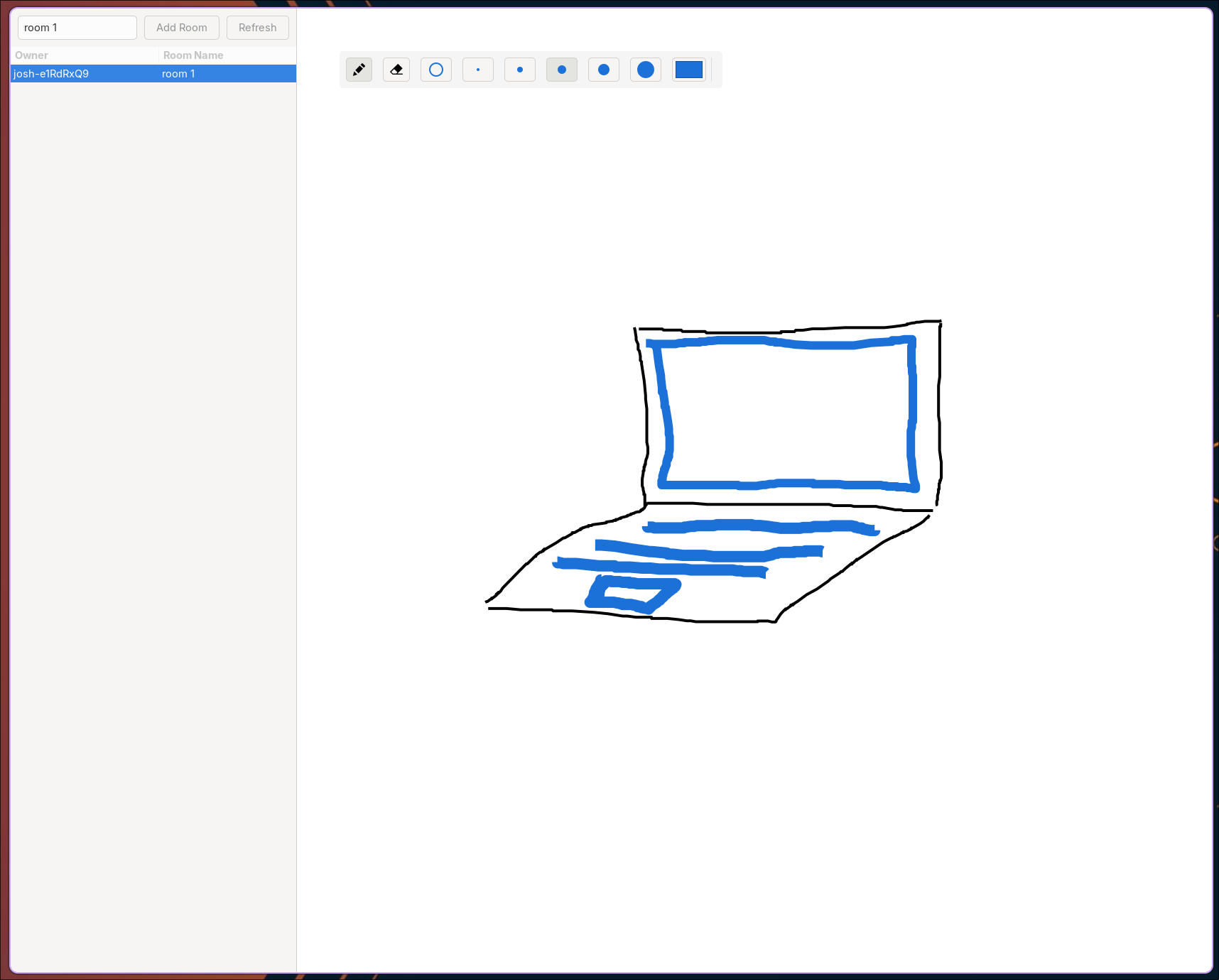

Chalkboard is a peer-to-peer, distributed whiteboard. Users can create and discover rooms, each with their own whiteboard.

Source is available at Chalkboard.

Implementation

The core communication stack is built on libp2p. The clients use mDNS to discover other clients on the network without configuration from the user. mDNS uses IP multicast to discover other clients on the local network, which removes the need for a central directory service to store clients, or the user specifying other clients.

For communication we use a combination of tcp sockets and libp2p pubsub. Each line is represented using the following struct,

type Point struct {
    X float64
    Y float64
}

type Line struct {
    Index  int
    Pencil Pencil
    Points []Point
}

where Pencil contains information about the line style. As the user draws the line, we update the Points array and redraw the canvas containing all lines. To synchronize the lines between the client drawing the line and all other clients we make use of pubsub.

A Publisher/Subscriber (pubsub) system consists of clients, also known as peers, and a collection of topics. Pubsub is a form of indirect communication in distributed systems. Publishers can publish messages to a given topic, while subscribers can subscribe to a topic, indicating they wish to receive messages for the topic. This removes the requirement for publishers and subscribers to know each other, instead communicating through topics. In our case, we create a topic for each room with the format <host_name>-<room_name> to reduce room name clashes. When a user joins a room, they are subscribed to the relevant topic. The messages published to a topic are simply the Line struct given above in json format, as the peer draws the line.

This reduces the complexity of managing the clients in a room, since pubsub handles passing messages from a publisher out to all subscribers. The caveat is pubsub is time coupled, peers only receive a message if they are subscribed when the message is published. Additionally, each client must know the rooms made by other clients since pubsub does not include any topic discovery mechanism. A client could be listening to all rooms at all times but they would still miss messages created before the client program is started. To solve this issue, we create a mini server service on each peer for serving rooms.

We have a special topic /client which active clients periodically publish their name, a list of rooms, ip address and port. If a client wants to join a room, they first send a request to the IP Address and Port of the room host, requesting the room.

type Request struct {
    Type int
    Name string
}

The peer responds with a canvas containing all lines in the room.

type Canvas struct {
    OwnerName string
    RoomName  string
    Lines     map[string]Line
}

Then the client subscribes to the room topic to receive any future drawing. This reduces the time coupling problem to each client maintaining the state of each room they create.
